Steep Banks |
|
|
A typical situation in which it is necessary to fasten the liner and shore mat to a steep surface is given if there is a wall, palisade etc. right next to the pond. If the liner is only propped up against the surface, dirt will accumulate between the wall and the liner. At one point a seed will germinate and the growing roots will begin to press the liner down toward the water.
|

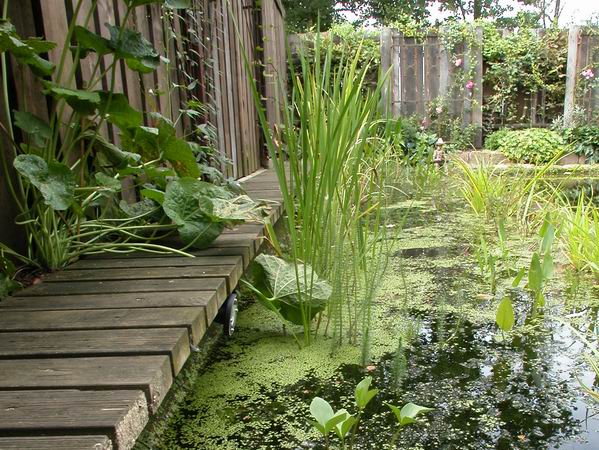

 A typical application: Walls on the perimeter of the plot... |

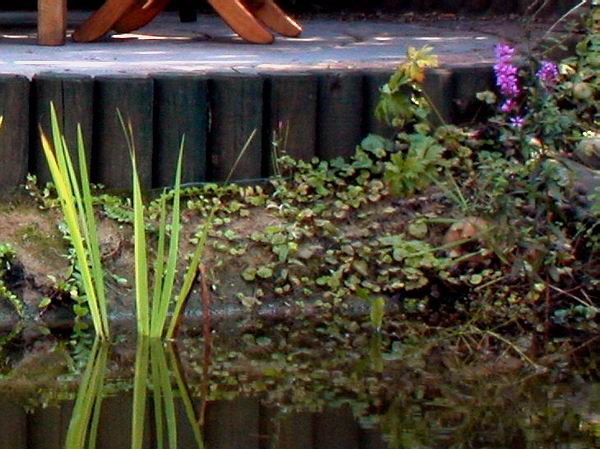

 ... oder Palisaden an Sitzplätzen. Dort muß die Folie auf wenig Platz befestigt werden |

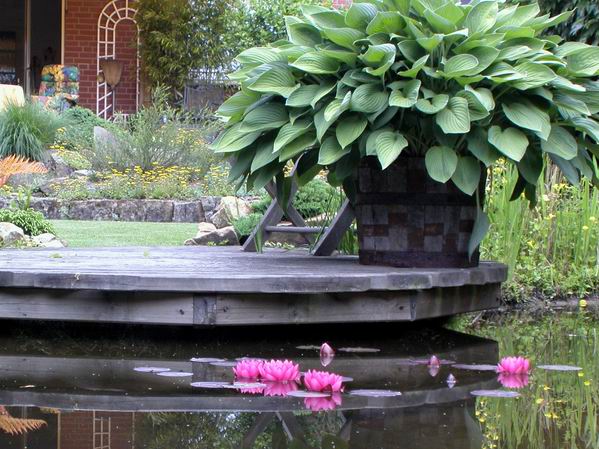

 A good solution: The pier overlaps so that the fastened area is invisible. |

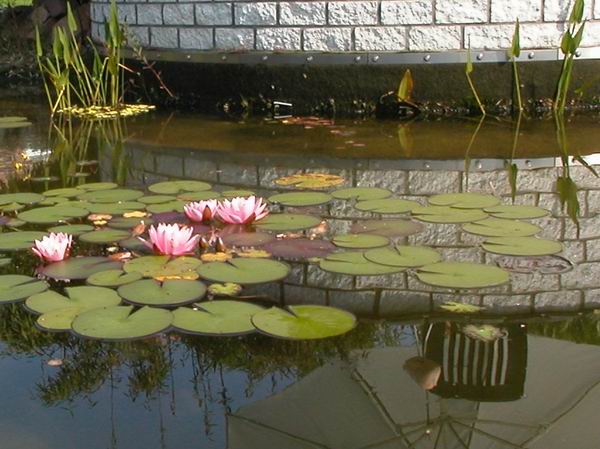

 Difficult on walls: The fastening rail remains visible... |

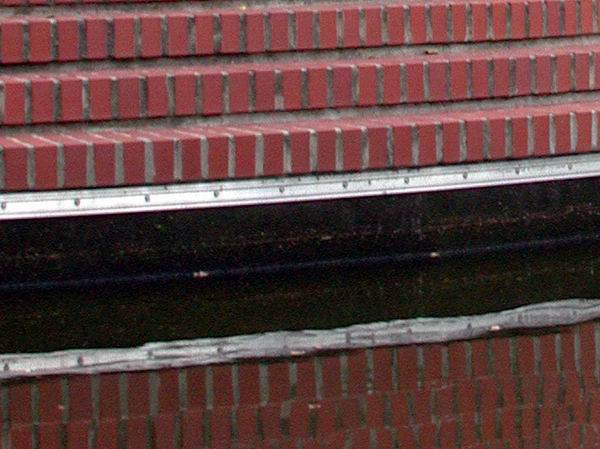

 ...and can look ugly - this needn't be so. |

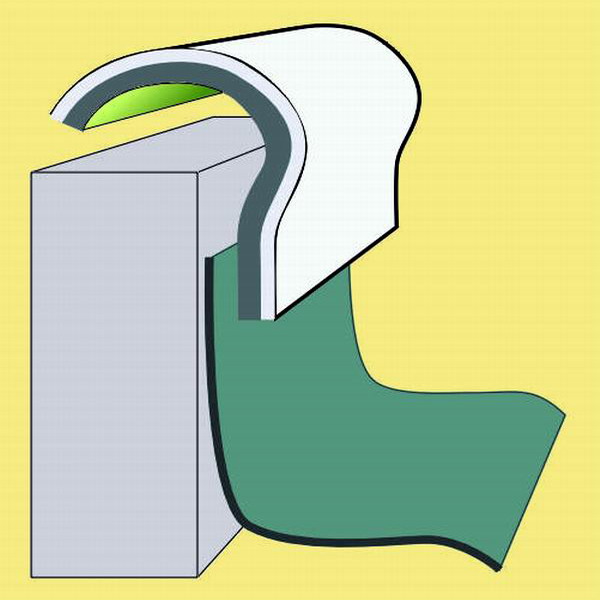

 Better: Lay the liner up against the wall. Shore mat overlaps from above. Green side toward the shore. |

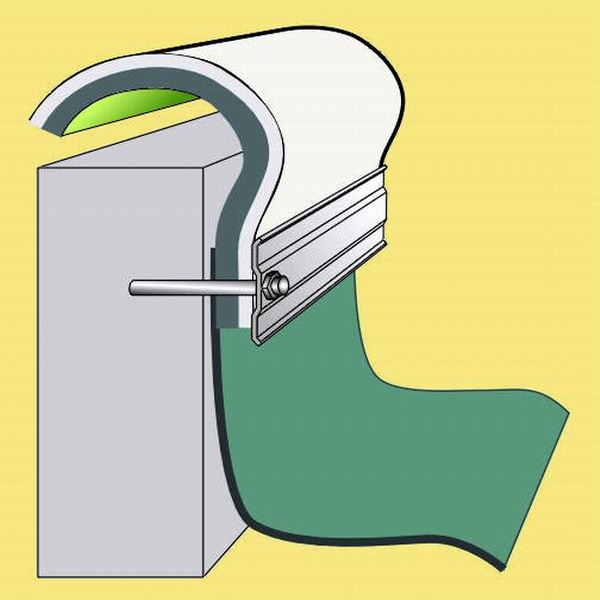

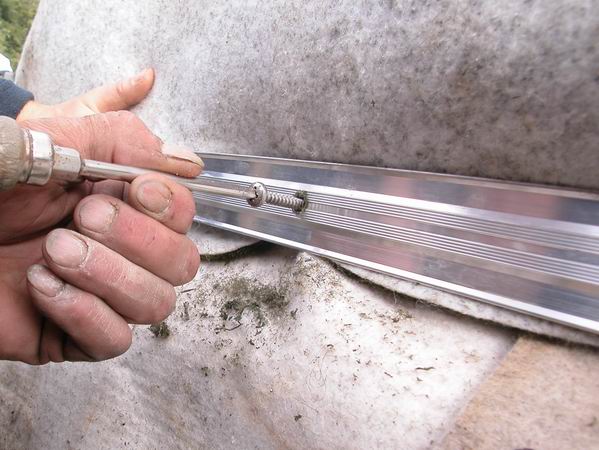

 Liner and shore mat are simultaneously fastened to the wall with the NaturaGart clamping profile. |

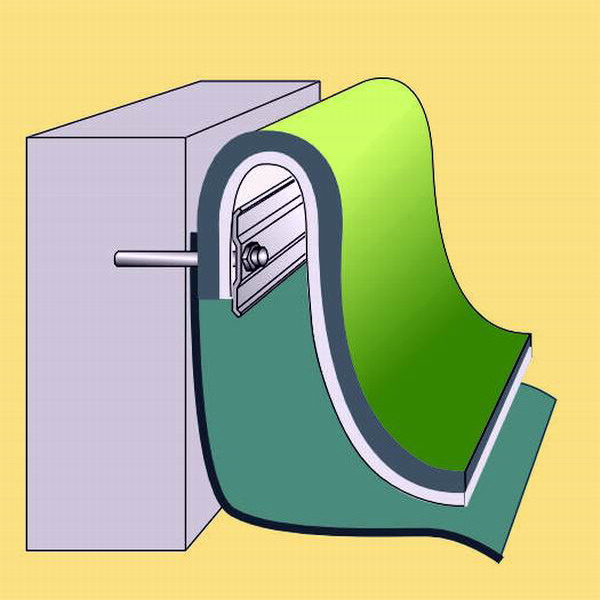

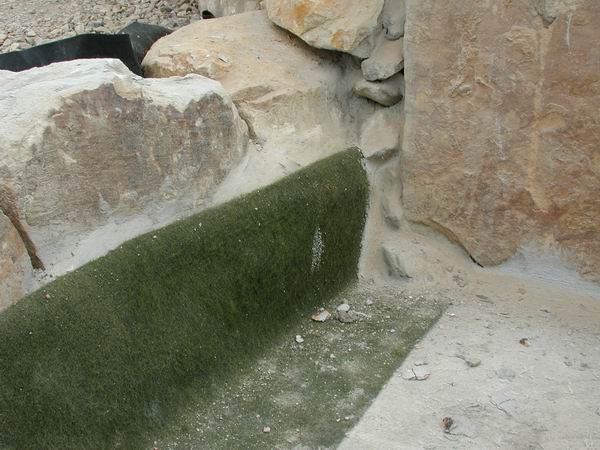

 Then the shore mat is folded back to the pond. The profile is invisible. |

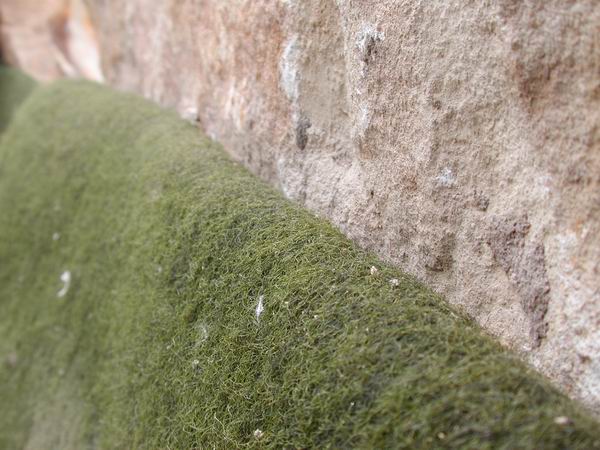

 Done: The NaturaGart clamping profile holds the liner and shore mat to the wall... |
 ...while the aluminium profile itself is no longer visible. |
 The NaturaGart clamping profile is 1m long and 44cm high. It is very sturdy and can even be fastened onto curved surfaces. It is supplied without paint and is pre-drilled.
Also recommended:
10 stainless steel screws,
3-5 per metre. |
|
|
